Subtitles - Converting a DVD MKV to IDX SUB files on a Mac

I've done a few posts about subtitles, and I continue to experiment and learn all the time. If you want to read the other posts, then please have a look at:

Subtitles - Convert SUP to SRT

Ripping your DVDs and Blu Rays pt.2: Extract Subtitles for M4V / MP4 / iTunes

They may help answer your questions. This post is specifically about DVD subtitles in an MKV container. DVD subtitles are not an image, they are a text file (Blu Ray subtitles are images and are stored in SUP files).

I will be using the excellent Swedish drama 'Crimes of Passion' to demonstrate.

When you look in Handbrake you will see they appear as VOBSUB (text files):

What Handbrake does is to then apply the worst font in the world to it to create a horrible looking output:

"Good grief," thought Puck, "I can't be doing with this subtitle font..."

Ahhhh! It's horrible! It looks very jagged even on a small screen, but on a big TV it's awful! Also, if you burn it in, you can't ever turn it off. You never know, you might learn Swedish sometime... Or have Swedish friends over to watch it whilst you are cleaning the car....

Anyway, luckily, the font that Apple devices (iPad, iTunes, Apple TV) use are much nicer and it would be great to have those instead. We just need the subtitles in a file inside the MP4 container

"Well don't burn it in - just rip the subtitles as a file and turn them on in Quicktime or something" I hear you cry! Well, yes, you could try that, but Apple devices don't understand the subtitle output. Don't know why... Subler sees it just fine, but it causes Quicktime to error.

Here's how it's done (as ever, using my Mac - PC/Linux users will have to try and find equivalent software).

For this article, I used:

• Handbrake version 0.9.9 x86_64
• MKVToolNix version 5.6.0
• Subler version 0.30

Handbrake

Rip the MKV to MP4 using Handbrake, but don't include the subtitles! Don't know how? Read this:

Ripping your DVDs and Blu Rays for your Apple Mac / iPod / iPhone / iPad etc

MKVToolNix

You will need a handy little tool called MKVToolNix which can be downloaded for PC, Mac and Linux. Once installed, open the program GUI and find the MKV file you are wanting to rip and "add" it. Now you want to look for the subtitle track you are after and make a note of the ID number - you'll need it in a minute:

Now you need to open Terminal, because you are going to use the non-GUI utility mkvextract, that comes bundled with MKVToolNix, to get the subtitles extracted. You will need to type the following:

/Applications/Mkvtoolnix.app/Contents/MacOS/mkvextract tracks /<MKVpath>/<MKVTitle>.mkv  <TrackNo>:/<OutputPath>/<OutputFile>.sup

<MKVpath> = the directory where your MKV is stored
<MKVTitle> = the name of the MKV
<TrackNo> = The subtitle track number you made a note of earlier
<OutputPath> = the directory where you want the subtitles
<OutputFile> = the output file name

One you hit enter, the subtitles will be extracted:

And once the progress = 100% your subtitle file is ready and waiting!

Now the program is clever - it knows these aren't images so it changes the output file to be IDX and SUB. The IDX file is the index file and the SUB file is where all the subtitle text is held. None of that matters really, it's now a text file, and as such can be understood by a wider variety of programs - including Apple products.

Subler

Good old Subler - where would I be without it - it's a brilliant utility for the Mac.

You just need to add the subtitle track and save it - I've detailed how to do that in this blog post towards the bottom of the article.

You are adding the IDX file this time, rather than the SRT, but it's the same process as before apart from that.

FINISHED!

And so here we are - the finished movie:

"At last", thought Puck, "a subtitle font I can adore..."

These subtitles are now ready to be used on your iDevices and you can set options on devices like Apple TV to make them bigger or smaller or change the font. Huzzah!

iTunes 11 and 12 Not Updating iDevice Apps Automatically

This is a doozy. I've been trying to figure out for a while now why iTunes 11 and 12 no longer updates apps on an iDevice (like an iPod or iPad) automatically. It used to be that when you plugged in an iDevice and synced it, new Apps that had been downloaded to your computer were automatically transferred to the iDevice. This hasn't been the case since iTunes 11. Progress? Not sure about that! Well, I still don't know why but I have found some workarounds. (Screenshots are from iTunes 12.01.26 on a Mac)

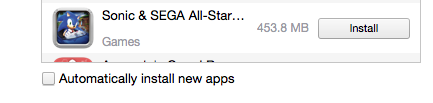

Automatically install new apps checkbox

In the "Apps" menu of your iDevice you will see the checkbox shown above at the bottom of the list of apps. Check it and hey presto all apps will sync....along with everything else not on the iDevice. This is fine if you are running one device, but if like me there are family members using the same iTunes account and each have different apps this isn't going to work.

Summary: fine if you want all your apps on all your devices
Command key

If you scroll down the list of apps in the "Apps" menu of you iDevice and find one that needs updating, click on the "Update" button whilst holding down the Command key. Magically, all of the icons will then turn to "Will Update"!

Now, there is a catch. If you have a lot of apps that need updating and not a lot of room on your device, you may well get an error message.

If you do, find the triangle icon with an exclamation mark and click on it:

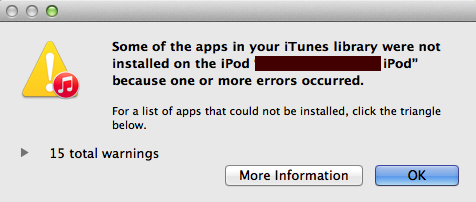

You will get a message like this:

Panic ye not! It's just there isn't enough free space to get all the apps on in one go. Just find another "Update" button, click on it again (whilst holding the Command key) and repeat the process as before. The more free space you have, the less iterations it will take. So get rid of those old apps crowding your iDevice!

Some really large apps may be left and simply won't update in a batch. You'll have to do those one at a time or free up more space.

If you can't free any more space, then try updating via the App Store app on the iDevice itself. If that doesn't work, you will have to free up more space or just keep the old version of the app.

It works - it's a bit manual - but it does work...

Conclusions

A bit of 'trial and error' has yielded two ways to get apps from your computer onto your iDevice. of course, I might have just missed a setting somewhere - so if I have - please leave a comment!

Citrix Receiver Mac - How To Change From Fullscreen To Window

Spent a frustrating few minutes trying to figure out how to exit Full Screen mode on Citrix Receiver with no menu and no idea what the shortcut key on the Mac was to get to the menu. Then hit my friend Google for advice. Came across a post which helped my out on the Citrix Discussion board

"ctrl + alt on the Mac keyboard was what I am looking for. It brings up the menu bar and the dock and lets you get out of the fullscreen mode."

Thanks to Matthias Hofmann for that answer!

You have chosen not to trust... - Citrix Receiver certificates for Mac

My work has a Citrix desktop meaning I can log in remotely to it using Citrix Receiver for Mac and a web browser. I recently tried to do this from my Mac (having used a Windows laptop previously with no issues) but came up against a curious error message:

"You not chosen to trust Thwaite Authority, the issuer of this servers certificate"

Really? Have I? Didn't remember not trusting anything... So off to Google I went. I found out the answer in a post on the Apple Communities from MacManiac_ which I thought I would outline here for reference.

The basic issue seems to be that Windows can navigate into the Citrix farm and get it's own certificate. The Mac cannot, without being given it explicitly. But the good news is you can copy the certificate from a Windows machine to a Mac and it will work. So you will need a Windows PC and this is how it goes:

Windows Machine Instructions:

1) From a Windows computer, log in to the Citrix Gateway once and launch any application.     This will ensure that the certificate gets installed in Windows, if it’s not already present.
2) In Windows, log out of the Citrix gateway.
3) launch Internet Explorer if not already running.
4) in IE, go to the Tools menu –> Internet Options –> Content tab
5) click the Certificates button
6) click the Intermediate Certification Authorities tab
7) find the “xxx Authority” certificate in the list (where "xxx" is the name in the certificate error from Citrix Receiver on your Mac - in my case - Thwaite Authority)
8) click the certificate once to highlight, then click Export
9) click Next
10) choose DER Encoded Binary X.509 (.CER)
11) click Next
12) click Browse, and change to the Desktop if not there already
13) in the file name field, type or paste: Network Solutions Certificate Authority
14) click Save, click Next, click Finish.
15) there should now be a file on the Windows desktop with the name
       Network Solutions Certificate Authority.cer
16) copy this file to the Mac in whatever way you normally move files.

Mac Machine Instructions:

17) on the Mac, copy the file to your desktop.
18) in Finder, go to Applications –> Utilities
19) launch Keychain Access
20) open the System keychain and import the certificate
21) restart your Macintosh and then try to access your Citrix Gateway again

This is reproduced from that post from MacManiac_ so a big shout out to him/her. This works like a charm and I was logged in and working in no time!

NOTE - I am using Windows 7 and Mac OSX 10.8.5 but I suspect it's broadly similar across operating system versions

Subtitles - Convert SUP to SRT

Ah subtitles... When ripping Blu Rays from an MKV to M4V (MP4) they used to be quite a pain in the backside (see this previous post for details!). But if you are happy with 'burning in' subtitles (i.e. having them form part of the picture) then Handbrake v 0.9.9 will happily provide this service for you out of the box.

As you can seem you just simply go to the 'Subtitles' tab and choose the subs you want and lo and behold the Bitmap image of the subtitles will adorn your movie:

It even retains the font and colouring because these are images - not text.

Now this is fine for 'Forced Subtitles' (where the characters speak gibberish - in the case above taken from "Thor - The Dark World" - 'Dark Elven') but when you want to have the ability to turn the subtitles on and off, this won't work. These subs are burnt onto the picture. If you want to have the ability to switch languages, or something like that, the subtitles need to be stored in a file - usually a text file.

A media player like VLC does understand the subtitle files that are images natively and will happily let you turn them on and off through a menu option. iTunes or QuickTime does not support image subtitle files - only text. So how to convert the bitmap image to a text file? Well, as ever, it's a bit complex....

Fear not - I shall attempt to steer you through the pitfalls. You will need the following software:

• MKVTools (http://www.emmgunn.com/oldsoftware.html) <- The developer is busy updating this toolset, but you can do this with the old version still on the website. Shareware, but you can use it for free with a nag message.
• Subler (https://code.google.com/p/subler/) <- Mac only
• Subtitle Edit (http://www.videohelp.com/tools/Subtitle-Edit) <- Windows Only

You will need a nice MKV version of your movie with the subtitle track that you want included (no idea what I mean by that, then please refer to a previous blog post of mine on how to do this).

This walkthrough is for a Mac, with a bit of Windows PC software thrown in. I'm sure equivalent software are available for both platforms. The reason I use Subtitle Edit is a friend recommended it and I haven't found a Mac equivalent.

Let's begin...

MKVTools

(1) Open MKVTools and open your MKV file.

(2) Navigate to the "Edit" Tab and choose the subtitle track you want to export (If you aren't sure, open the MKV is something like VLC Player and fiddle with turning on the different subtitle tracks until you find the one you want, then go back into MKVTools).

(3) Check the "Extract Selected Tracks" box on the right and click "OK". Another window will open and you will see the progress of the file extraction. It will store the subsequent SUP file in the same folder as your MKV file.

UPDATE - 14th December 2014 - An alternative to MKVTools

I haven't been using MKVTools recently. I've found a better way using MKVToolNix. I've detailed how to use this in a seperate blog post (which deals with subtitles from DVDs, but can also be used to get the SUP file from Blu Rays using exactly the same method):

Subtitles - Converting a DVD MKV to IDX SUB files on a Mac

Subtitle Edit

Switching to my Windows PC now, I take my extracted file and load up Subtitle Edit

(1) Open the software and select the "Open" menu option then choose your SUP file. It will open into the "Import/OCR" screen like the image below:

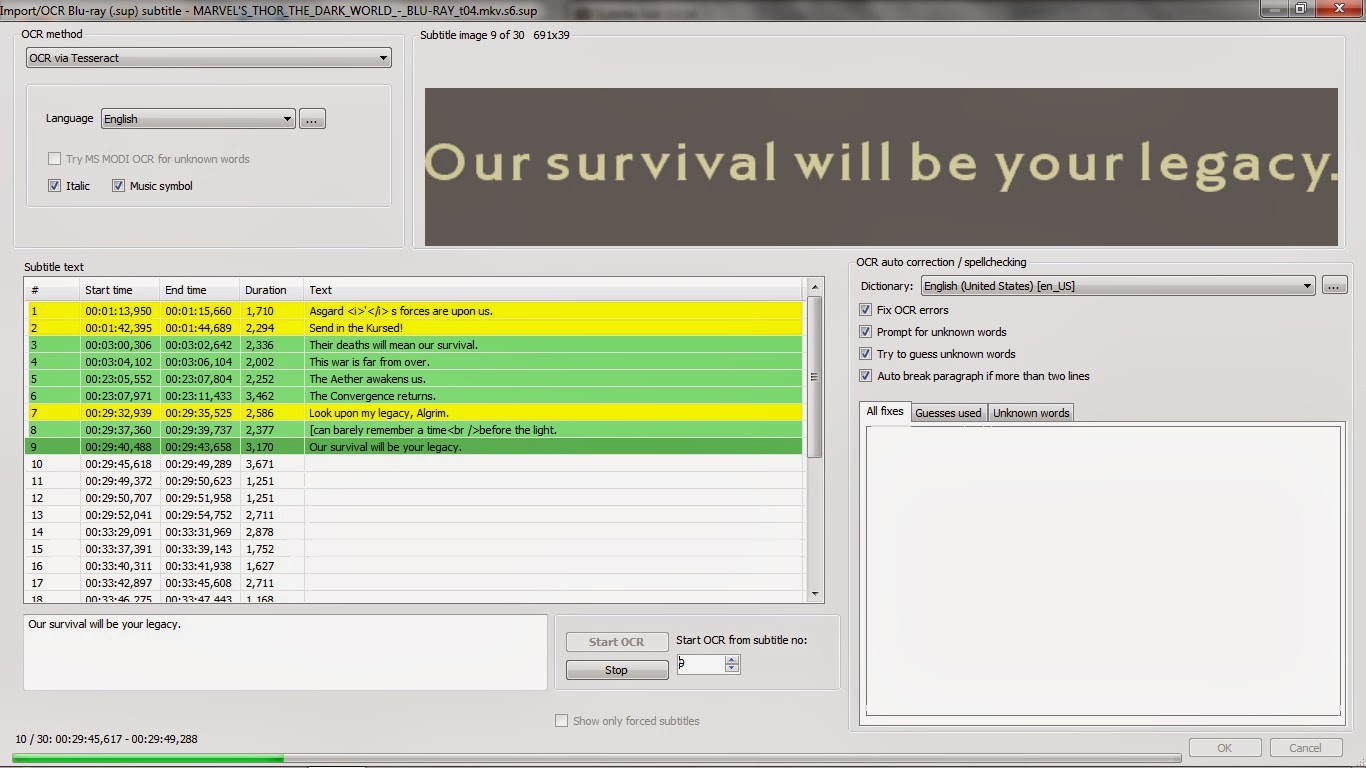

(2) The software will now attempt to OCR the subtitle images. In plain english, it will scan the subtitle images and translate what it reads into plain text. No OCR is perfect, it will make mistakes (especially in a fantasy tale like Thor! - "Send in the Kursed" sugggested as being changed to "Send in the Nursed"!) but we can correct those as we go along, ignore them or sort them out later...

(3) And so you end up with an editable list where you can go and make corrections where necessary. Click into the Text box and correct away. If you want to compare it to the source images, then open up the SUP file in a tool like BDSup2Sub and browse through the file.

Now I've only scratched the surface with this program. You can look at the Subs over the video, correct timings and do all sorts of funky things. But if you've ripped the subtitles from the same MKV as you ripped the movie, then there's no need. You simple need to focus on getting the spellings and words correct.

Obviously, in my example, there aren't many lines of text. I appreciate in a fully subtitled movie there is a lot of work potentially - but that's just the way it is!

One you have finished your corrections, save your file as a SubRip (.srt) format and back to the Mac you go...

Subler

If you have read some of my other blog posts, you will know I like Subler and it makes this last step super easy.

(1) Open up the movie (the MP4 or M4V you ripped from the MKV) and click on the + button in the top left-hand corner:

(2) Locate the SRT file you saved earlier and click "Open". You will see the screen below which you just click "Add" on:

(3) Save your work. This also assigns the subtitle a Track ID, which you will need

(4) Now click on the Subtitle track and set the following options:

Language: English (or whatever language you are using)

Alternate Group: None

Forced: All Samples Are Forced

Forced Track: Choose your subtitle track

(5) Now Save again - and you are done!

THE FINISHED MOVIE

Here's a screen shot using QuickTime player:

The text subtitles are at the bottom. QuickTime doesn't support the forcing of the subtitles. iTunes does, and so your subs should display automatically - but if they don't just choose them in the menu option manually.

SUMMARY

If it's alien speak you're after, or you will always want the subtitles on (such as in a foreign language film) then just burn them straight onto the image using Handbrake. Easy peasy and it retains the nice fonts and colours.

If you use Quick Time or iTunes, and want to turn the Subs on and off, then it's a bit of a painful process, but it works just fine.

As ever - any feedback - please leave me a comment below...

Restore iPad Mini from iPad but no apps, movies, music appearing

My wife got a new iPad Mini for Christmas to replace her old iPad 1. I thought the easiest thing to do would be to take a backup of the old iPad and move it to the new iPad Mini.

When doing this, iTunes asked if I wanted to update to iOS 6.02. I said I did. And I think that's where the problem started, because afterwards none of her apps or media appeared on the new iPad.

So I tried the Restore From Backup again. Still no apps.

What was appearing was her wallpaper and her shortcuts, but not the apps themselves.

I reconnected the old iPad and took another backup, then tried to do another Restore. Same result.

Time to hit Google. I found a post which seemed to talk through the issue. Again the user asking the question had also updated their iOS during the install. The guy answering talked though a solution, but as I read the subsequent posts the apps still hadn't restored. Post can be found here:

https://discussions.apple.com/thread/4484316?start=0&tstart=0

I tried it anyway, and guess what, no apps. Not surprised, but I thought it was worth a go.

I remembered experimenting before with a corrupted backup that refused to back up properly and found that encrypting the backup forced it to do a full backup that made it work again. So I re-backed up the iPad 1 with encryption. This has the added benefit of backing up the passwords for the WiFi and email and so on.

I restored that to the iPad Mini. No apps.

I threw in the towel, and said to my wife that we had lost all her apps and their saved state. Perhaps it was an iPad 1 to iPad Mini thing...

Anyway, things weren't as bad as they seemed. When we started to manually load the apps on to the iPad, via iTunes, some of the saved state data came back. Kindle remembered her account details, her travel app remembered her packing lists. Some apps didn't, like the Olympics app didn't know about all the events she had saved, but they were definitely in the minority. Most of her apps remembered her settings and saved data.

So, to conclude, it might be an iPad 1 to iPad Mini issue. It might be that I updated the iOS. I don't know. However, the majority of apps, once restored manually, worked fine.

If you are attempting this migration, I would recommend not updating iOS until after everything has finished syncing. It's worth a try. Let me know if it works for you by posting a comment below, or if you have solved the issue - again - let me know.

Clean Install of Mountain Lion The Hard Way

It was supposed to be so easy. That's what the guide I used said. I've been having a few problems on my Mac with applications crashing and taking down OS X with it, so I decided to take the opportunity to download Mountain Lion and rebuild my iMac from scratch.

A quick surf around the web at lunchtime produced a great tutorial called How To Create A Bootable OS X Mountain Lion USB The Easy Way. Having read this it seemed pretty straight forward, so after getting home from work I set about following the instructions.

All went well until I had wiped my Mac internal hard drive and was beginning the install of Mountain Lion. It estimates 6 minutes until is needs a reboot, counts down to 0 minutes then sits there for about 5 further minutes. Then I hit an error message:

"Can't download additional components needed to install OS X"

Oh dear. Never mind, looks like my wireless network wasn't connected. Should fix it. So I re-run the "Reinstall OS X" menu option.

Same message.

I try this several times with the same, frustrating result. At this point I can hear my mates with PCs laughing at me, because Macs are meant to be easy. Right?

So I hit Google again and come across a forum post on MacRumours. Basically, this guy is having the same problem as me and there are a few answers but nothing really helpful to me.

There is a link to a guide on creating a bootable USB that doesn't need the download elements, but I have no OS X in which to do this. Those of you with a 2nd Mac should try this.

A bit more searching reveals a helpful MacWorld article on "Recovery Mode". If you have Lion, or Mountain Lion, installed before attempting a clean build a partition will be created to allow you to access components to rebuild the machine.

Using the cmd+R keys on startup I manage to enter this mode. I am authenticated using my Apple ID and I can begin recovery of Lion. But I want Mountain Lion. So I decide to try the USB one last time.

Still that same message.

So I reboot and hold down cmd+R. This time, I am taken to the Internet Recovery Mode. This I am supposed to get to using alt+cmd+R. Maybe I hit this by accident, but I decide I am taking no more chances. I am offered the chance to recover Lion and I take it. By the way, Internet Recovery Mode takes ages to enter - about 7 minutes on my Mac. So make a nice cup of tea. You will probably need it!

So I have gone with "Reinstall OS X" and I am now downloading Lion. This takes approximately 45 minutes on my Internet connection, but may be faster or slower on yours if you are at this point too...

The screen says "About 0 seconds remaining" for about 10 seconds then reboots. I am now greeted with a nice "Install Mac OS X" screen and an estimation of 23 minute until completion.

I am then greeted with a cheery reboot button. This doesn't reboot, however, but throws me back to the Mac OS X Utilities screen. So I reboot from there. Macs are intuitive, apparently :-).

Hurrah! A clean install of Lion!

So what now... Well, I still want Mountain Lion, so I go to the App Store and start the 4.37GB download AGAIN!!!

Meanwhile, I run Software Update to make sure I'm on the latest version of Lion. I read somewhere you need to be on a pretty high version to run the Mountain Lion upgrade, so best to check I am on the latest build. It turns out that the recovered Lion is the latest version, so I decide to download a few bits and pieces like a new Safari update and a malware removal tool.

Luckily I have a fast Internet connection, and also need another cup to tea....

40 minutes later and I have it downloaded. Not quite. 30 minutes in I have had the "restart computer" death message which I have been hoping to avoid that totally crashes my machine... I suspect my memory is bust, but that's another story...

Then I remember the Mountain Lion install program in on my memory stick. The one I tried to boot from. Doh! I can use that...

I decide to just upgrade Mountain Lion over Lion (after I have rebooted) and call it quits... I could try and do a really clean install of Mountain Lion by recovering it after I have upgraded the Lion, or creating another bootable USB, but I can't be bothered. Especially as my "restart computer of death" message seems to have nothing to do with the OS.

So off we go with the upgrade. I'm nervous as the screen looks the same as it did before. The preparing to install and 6 minutes remaining message appears, as before. This time, I am hoping it actually works... It still decides that there are random minutes remaining, flicking between 6 and 3 erratically, whilst the blue bar inches across the screen.

After 15 minutes of this - the old classic message appears about not being able to download components. Right - re-download from App Store then...

Another 40 minutes, and another cup of tea, move on by. I hope my Internet broadband provider aren't monitoring my connection too much tonight as I am getting through a lot of downloaded data!

I decide to copy the file over to a USB stick. That way, if it goes pear-shaped, I don't have to download it again. It's more delay, but I'm getting used to waiting...

That done I start the installer. I am met with the screen above. Uh-oh. But the good news is it only lasts for a few seconds before we are restarting the Mac and off to the Mountain Lion installer. Hurrah! Getting somewhere! It guesstimates 34 minutes to install....

After watching some tele, I'm back in front of the screen and we are done. It has taken about 30 minutes.

I don't know if this rant is helpful to anyone, but it felt good to document my trials anyway :-)

If I did this again, I would go into the Recovery partition and install Mountain Lion from there. If I were to give you advice on upgrading from Lion, I would probably install Mountain Lion through OS X, then head to the Recovery partition and clean install it from there. After you install Mountain Lion, the Recovery partition will allow a clean install of it, overwriting the previous Lion Recovery.
